| TECHNICAL SPECIFICATIONS | | MITR-3700 MM WB (7 m) | | MITR - 4270 MM WB (8 m) | |
| Non AC/AC | | Non AC | AC | Non AC | AC |

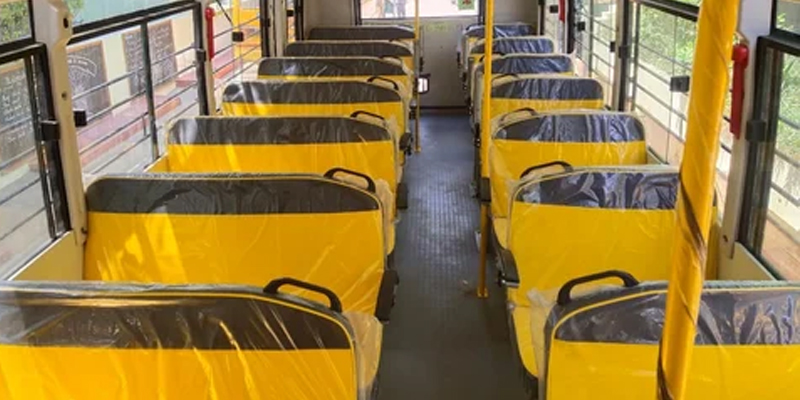

| Seating Capacity | 2 X 2 (Std Width) | 22+A+D (HB, SD) 26+A+D (STD, SD), 24+A+D (STD, DD) | | 30+A+D (STD, SD) 28+A+D (STD, DD) | |
| 3 X 3 (Std Width) | 39+A+D (STD, SD) 36+A+D (STD, DD) | | 45+A+D (STD, SD) 42+A+D (STD, DD) | |
| 3 X 2 (Wide body) | 33+A+D (STD, SD) 31+A+D (STD, DD) | NA | 38+A+D (STD, SD) 36+A+D (STD, DD) | NA |
| Note: STD-Standard School Seats, HB-Highback Seats, SD - Single Door, DD-Double Door, NA-Not Available, A- Assistant, D-Driver | | | | | |
| POWERTRAIN | | | | | |
| Engine Type | | ZD 30 DDTi Common Rail Diesel Engine | | | |
| Cubic Capacity | | 2953 cc | | | |
| Maximum Power output (Hp) @ rpm | | 140 @ 2750 | | | |
| Maximum Torque (Nm) | | 360 @ 1350-2750 RPM | | | |
| Clutch dia (mm) | | 310 mm | | | |
| Transimission | | Fully synchronized 5 speed Manual Gearbox | | | |
| FUEL SYSTEM | | | | | |
| Fuel Tank Capacity (Litre) | | 90 | | | |
| BRAKES | | | | | |
| Service Brakes | | Dual circuit,Hydraulic with Vacuum Assist | | | |
| Parking Brakes | | Transmission Mounted & Mechanical Linkage & Cable Operated | | | |
| SUSPENSION & TYRES | | | | | |
| Front & Rear Suspension | | Parabolic Suspension with Double Acting Shock Absorbers | | | |
| No. of Tyres | | Front 2, Rear 4, Spare 1 | | | |
| Tyre Size | | 7.00 × 16-16 PR | | 7.50 × 16-16 PR | |
| WEIGHT | | | | | |
| Gross Vehicle Weight (kg) | | 6650 | | 7200 | |
| DIMENSIONS | | | | | |
| Wheel Base (mm) | Wheel Base (mm) | 3700 | 3700 | 4270 | |
| Overall Dimension (mm) | Overall Dimension (mm) | 7060 x 2200 x 2630(Non-AC) 7060 x 2200 x 2850(AC) | 7060 x 2200 x 2630(Non-AC) | 7970 x 2200 x 2630 (Non-AC) 7970 x 2200 x 2850(AC) | |
| Passenger Platform Height (mm) | Passenger Platform Height (mm) | 786 | 7060 x 2200 x 2850(AC) | 1000 | |
| Min. Turning Radius (m) | Min. Turning Radius (m) | 7.2 | 786 | 8.3 | |
| Min. Ground Clearance (mm) | Min. Ground Clearance (mm) | 198 | 786 | 210 | |
| ELECTRICALS | | | | | |
| Electrical Description | 786 | Single Pole 12 V | | | |
| Battery (in Ah) (Non AC/AC) | 786 | 110 | | 110 | |
| Alternator A (Non AC/AC) | 786 | 90 | 150 | 90 | 150 |
| AC Compressor Capacity | 786 | NA | 220 cc (Single Compressor) | NA | 220 cc + 160 cc (Dual Compressor) |
